• Tow/haul mode selector, instrument panel-mounted
• Rear-wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Frame, ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

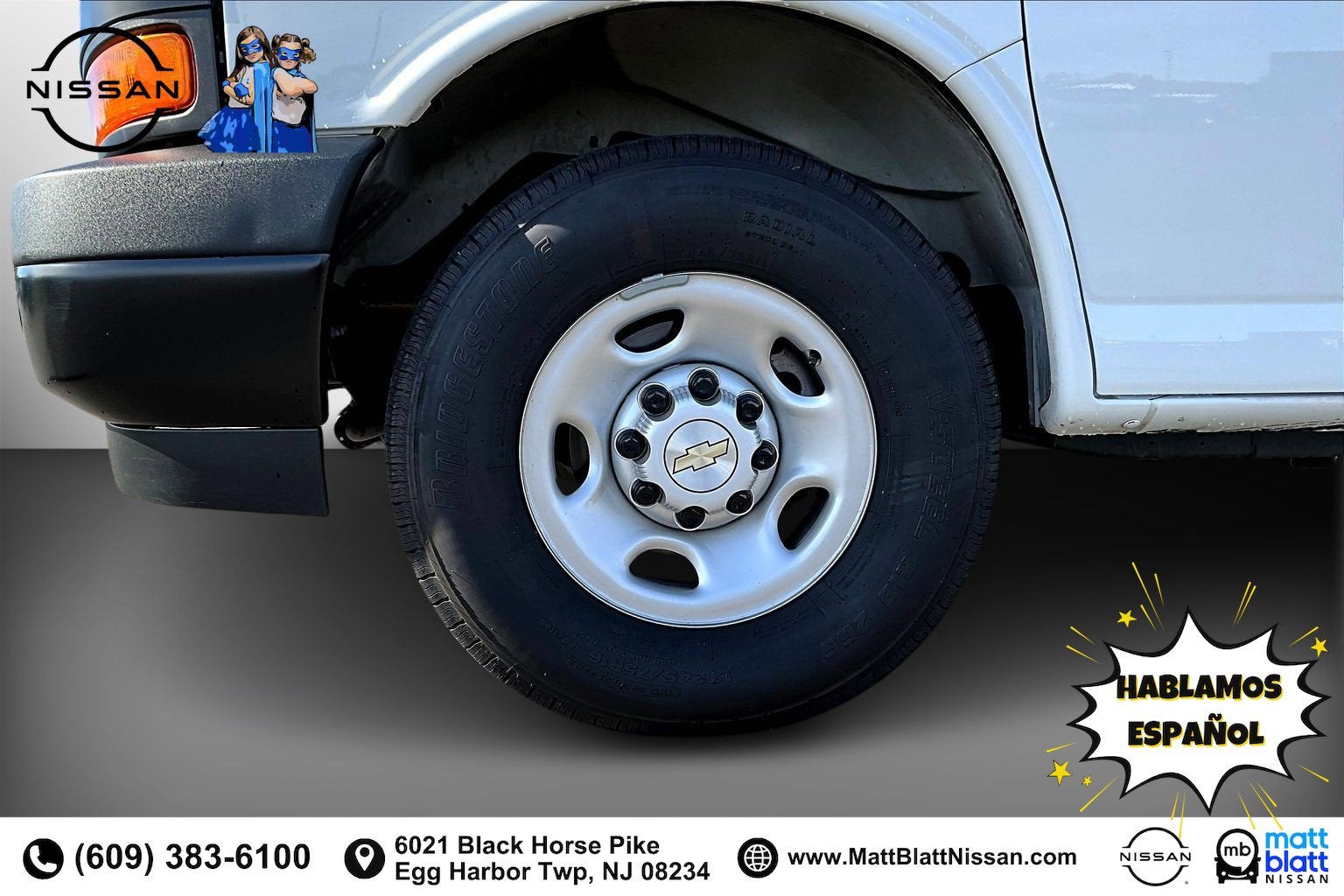

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Body, standard
• Door, swing-out passenger-side, 60/40 split
• Tire, spare LT245/75R16 all-season, blackwall
• Bumpers, front and rear painted Black with step-pad

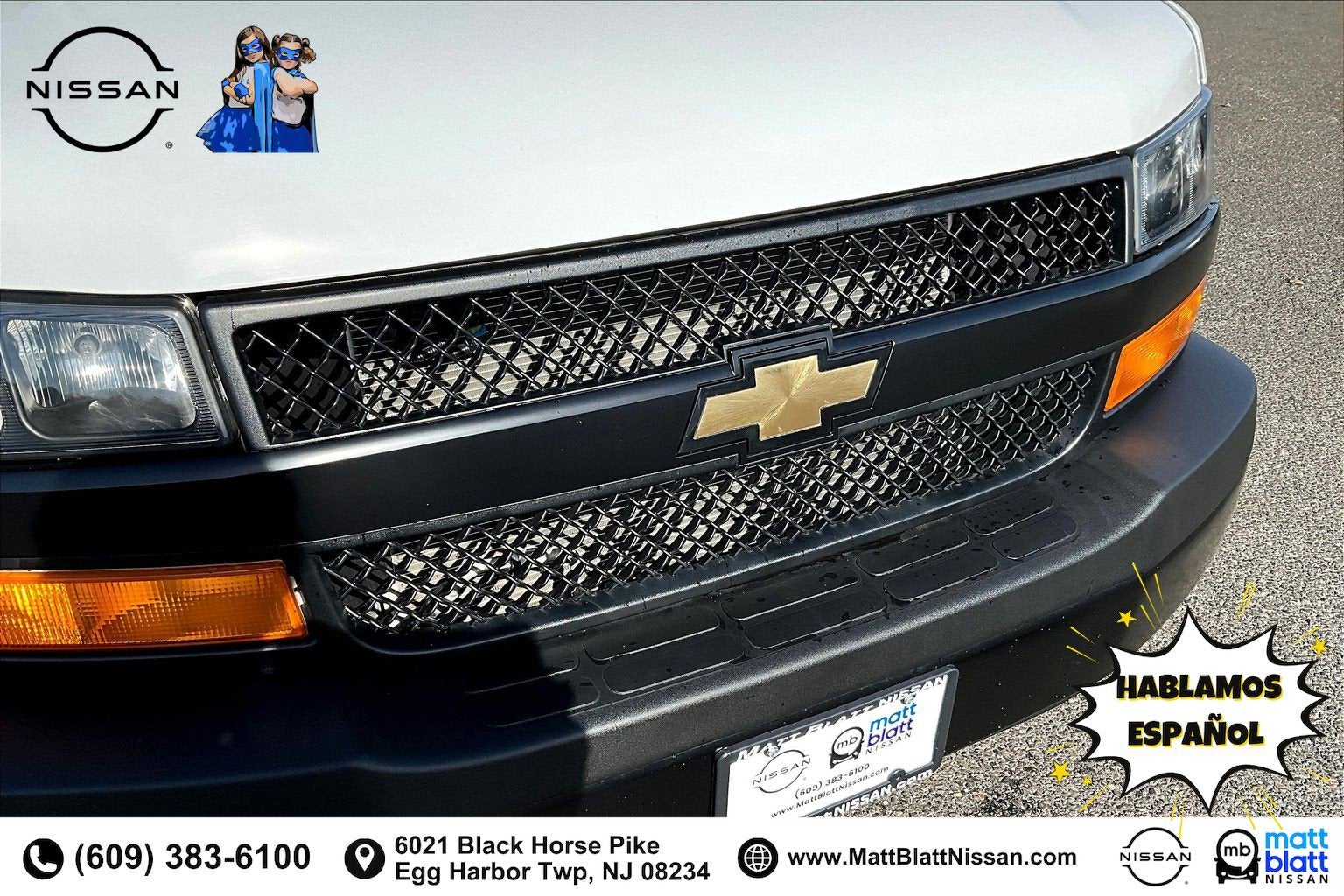

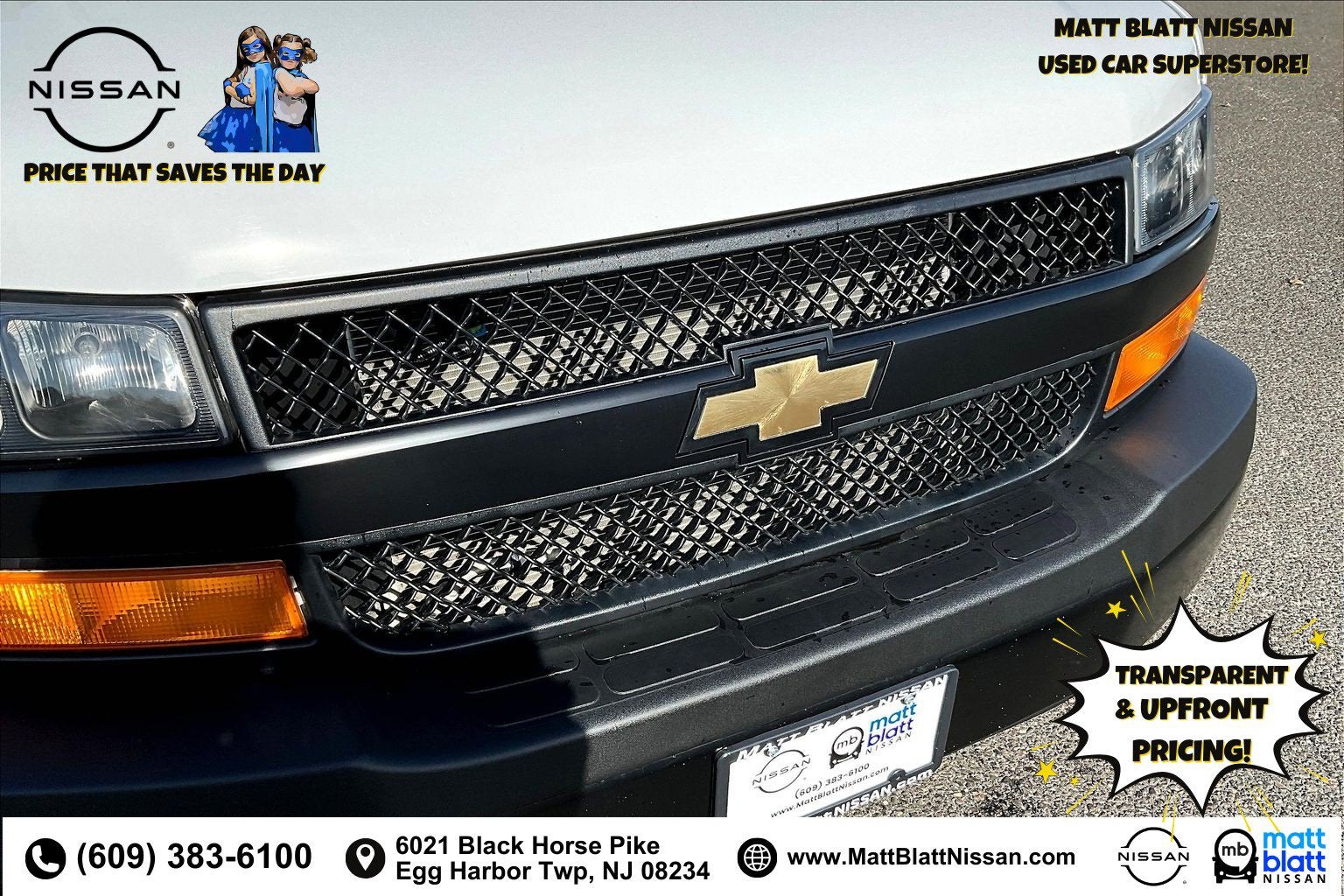

• Grille, Black composite

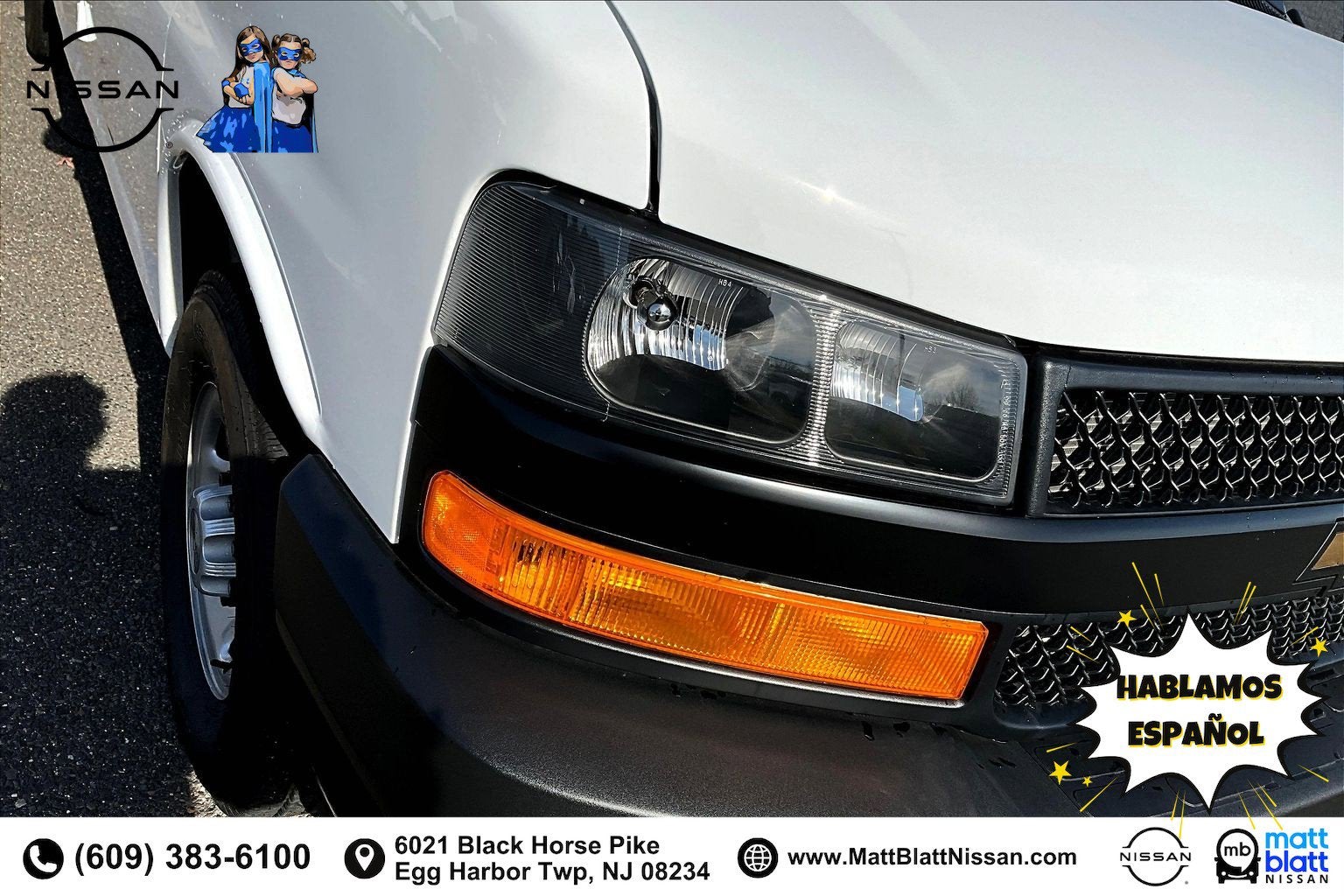

• Headlamps, dual halogen composite
• Mirrors, outside heated power-adjustable, Black, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows

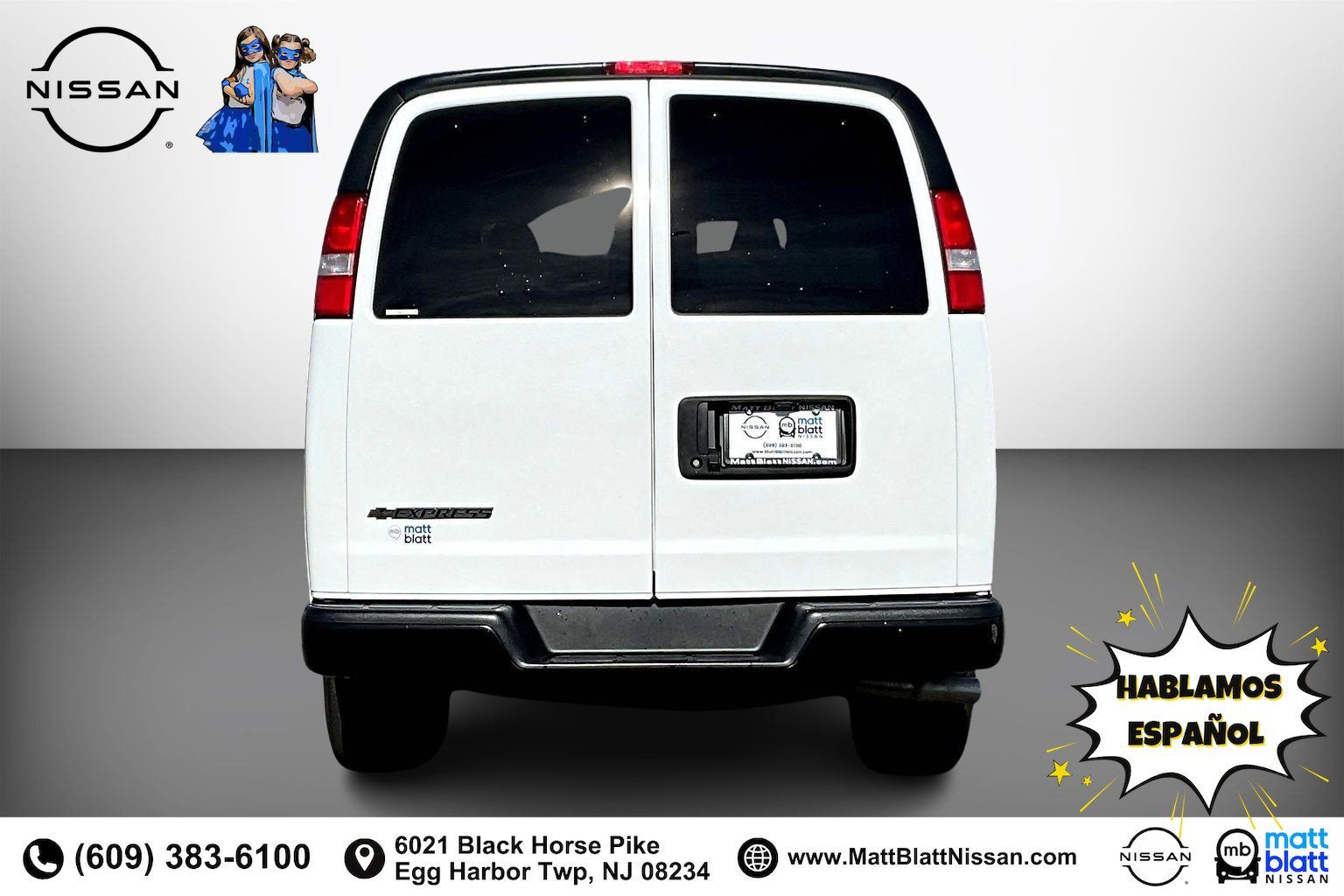

• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

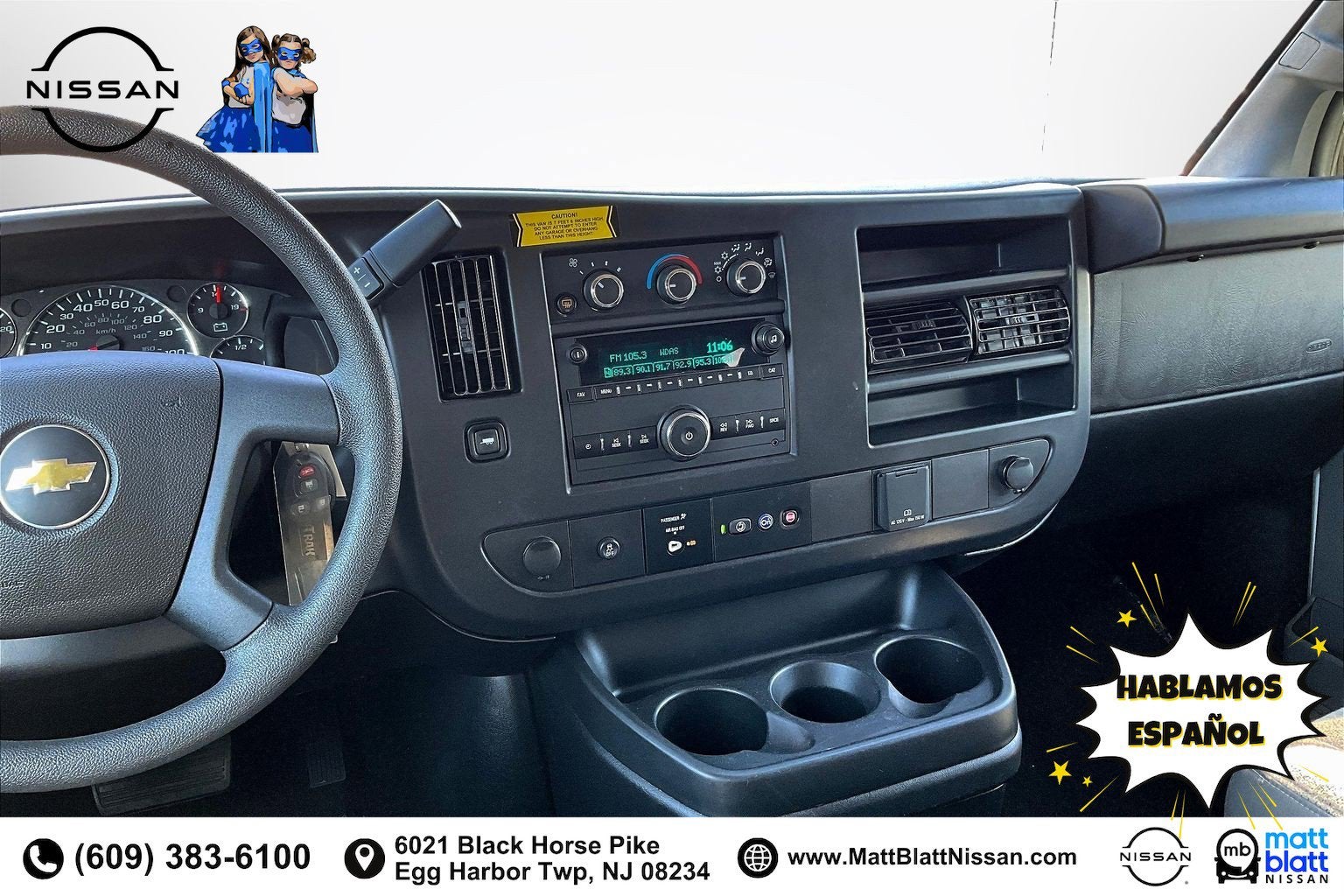

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers

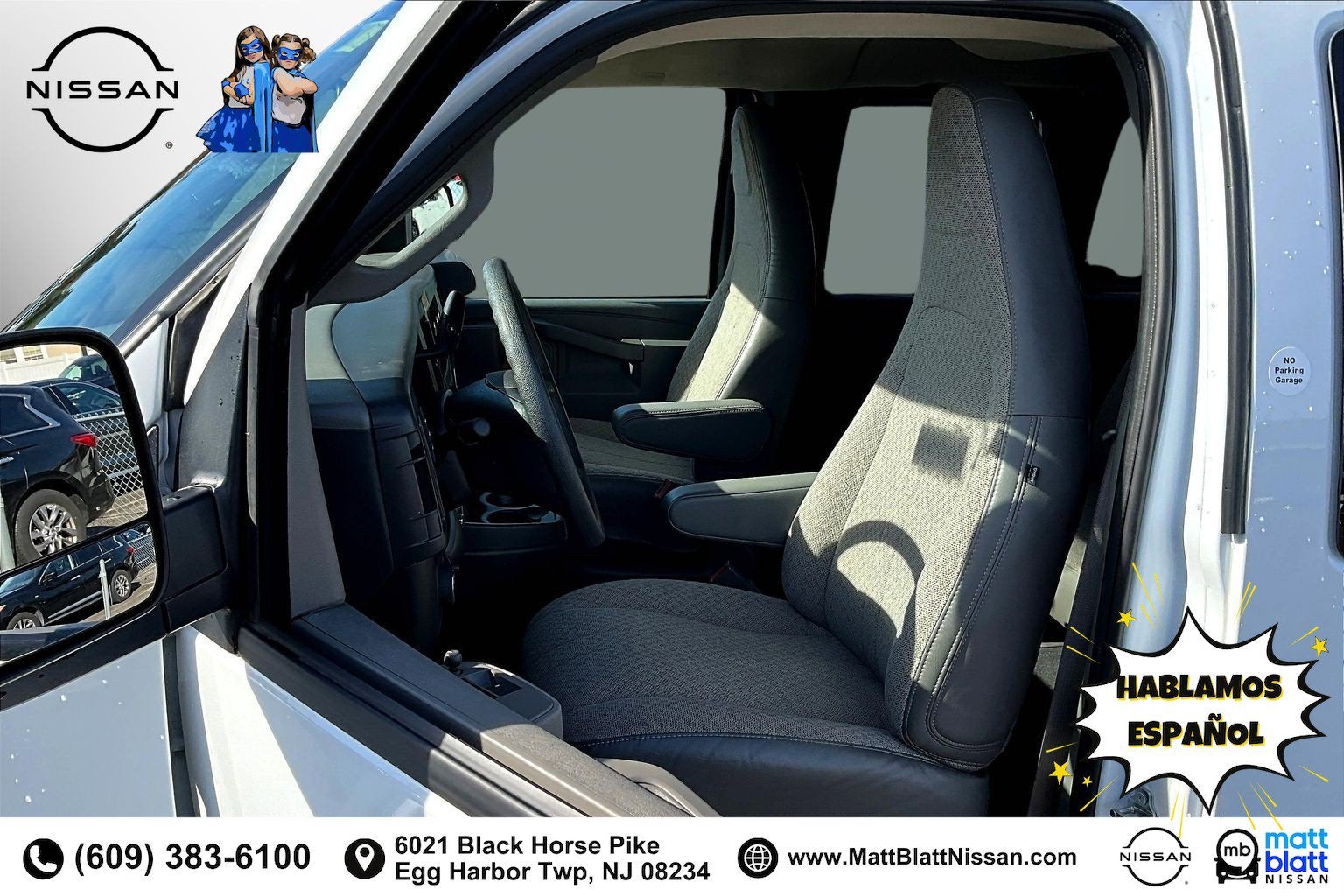

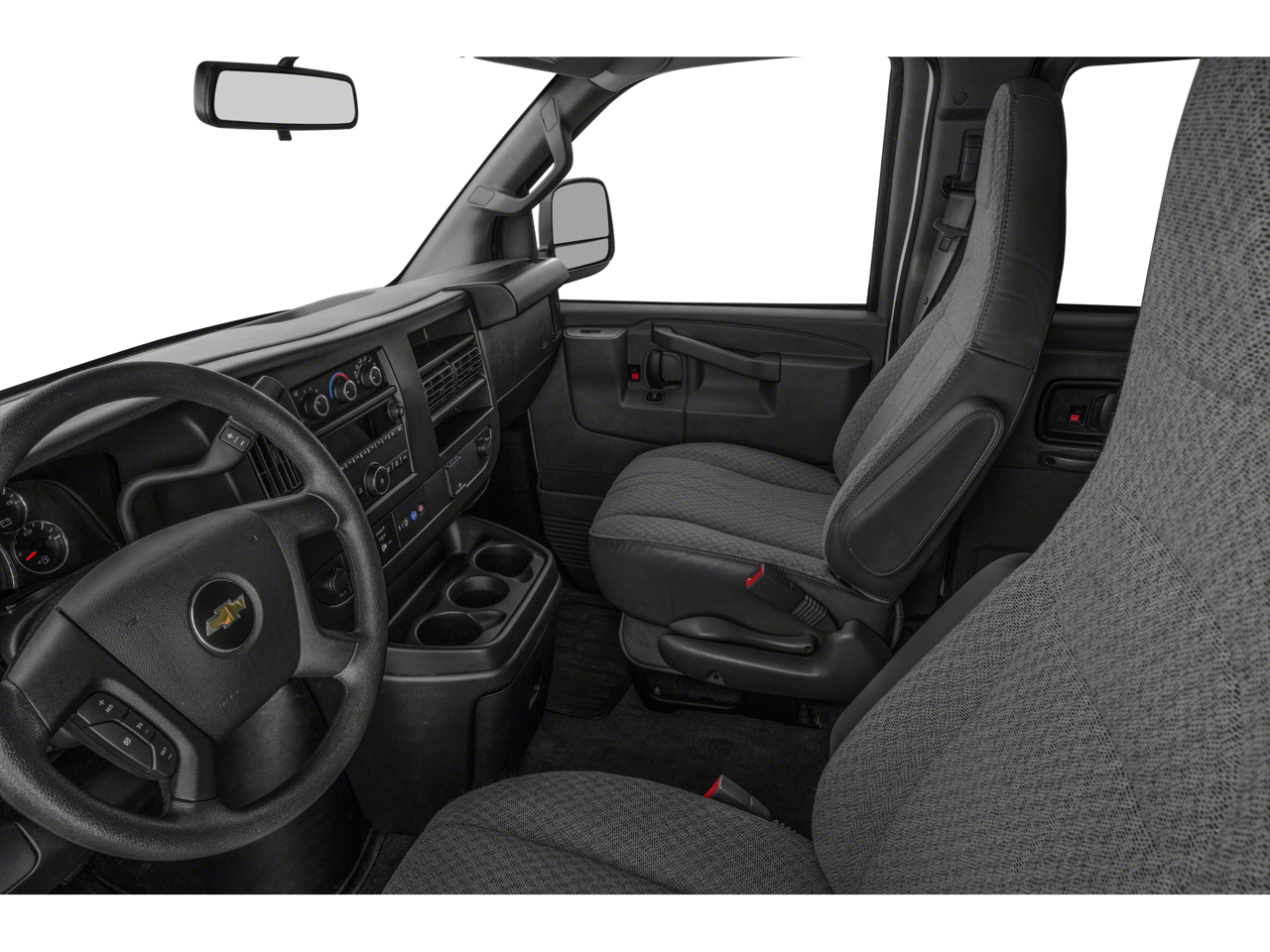

• Seats, front bucket with vinyl trim and head restraints, includes inboard armrests (Requires (93W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.)

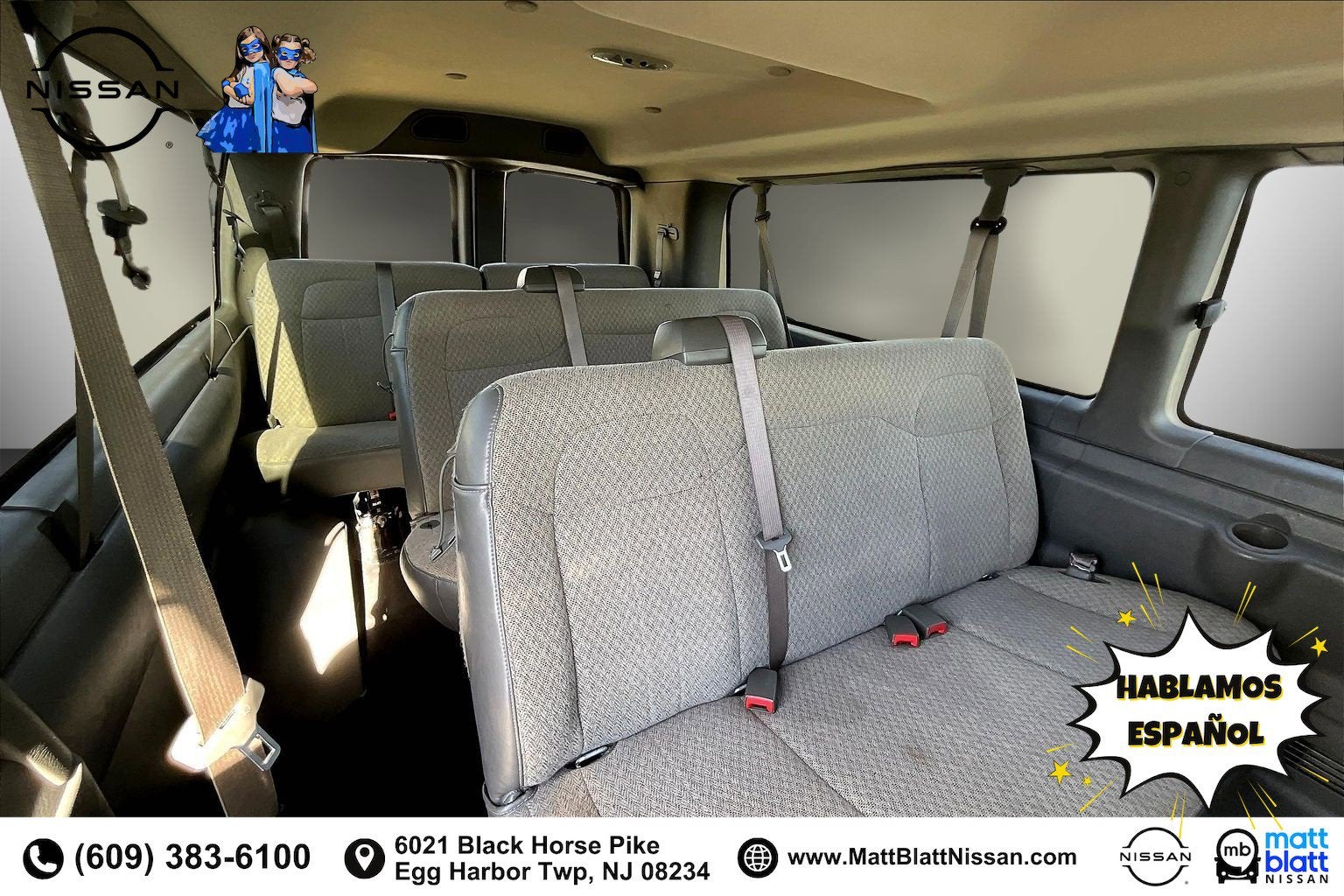

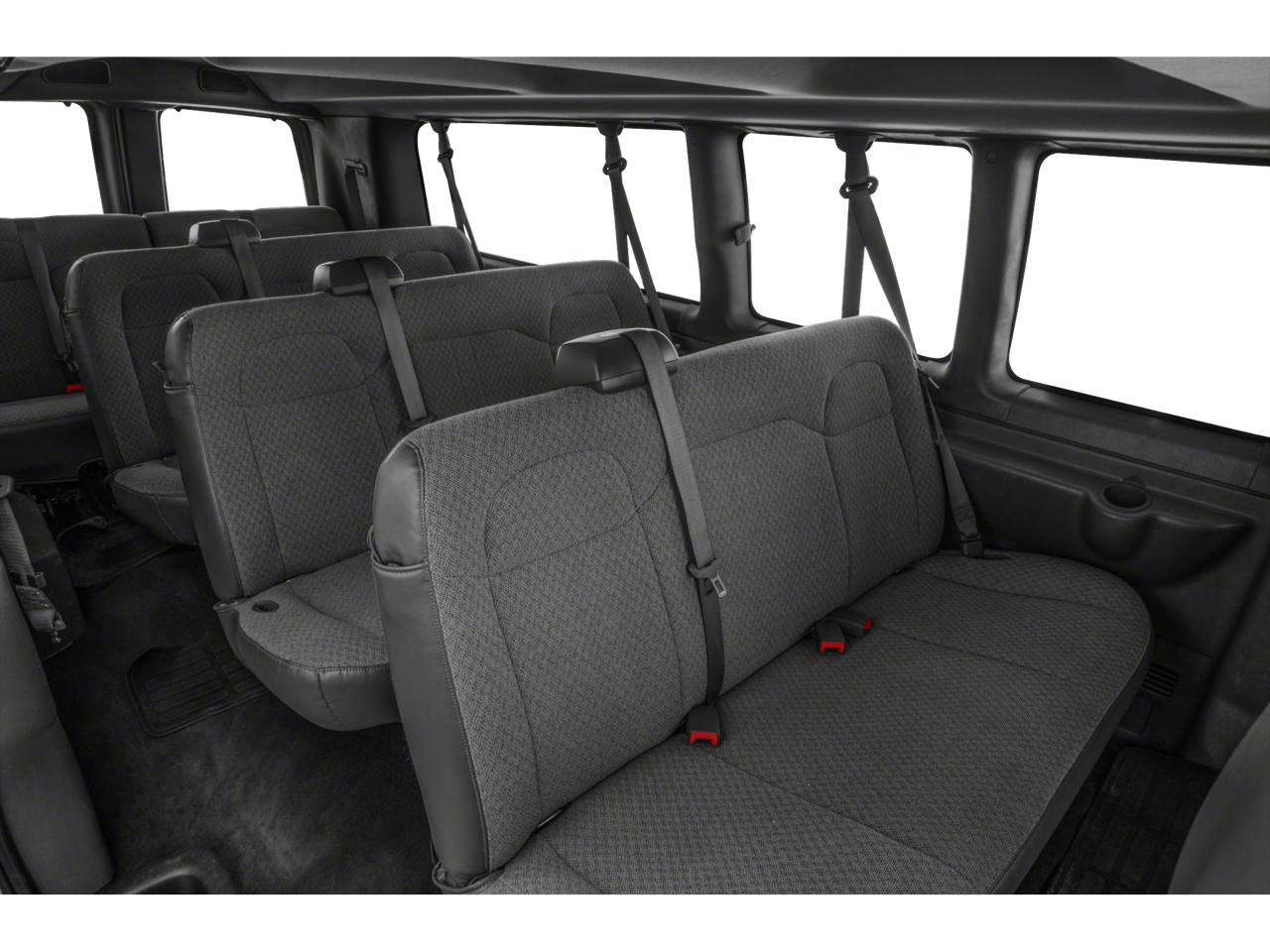

• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration
• Floor covering, full-length Black rubberized-vinyl

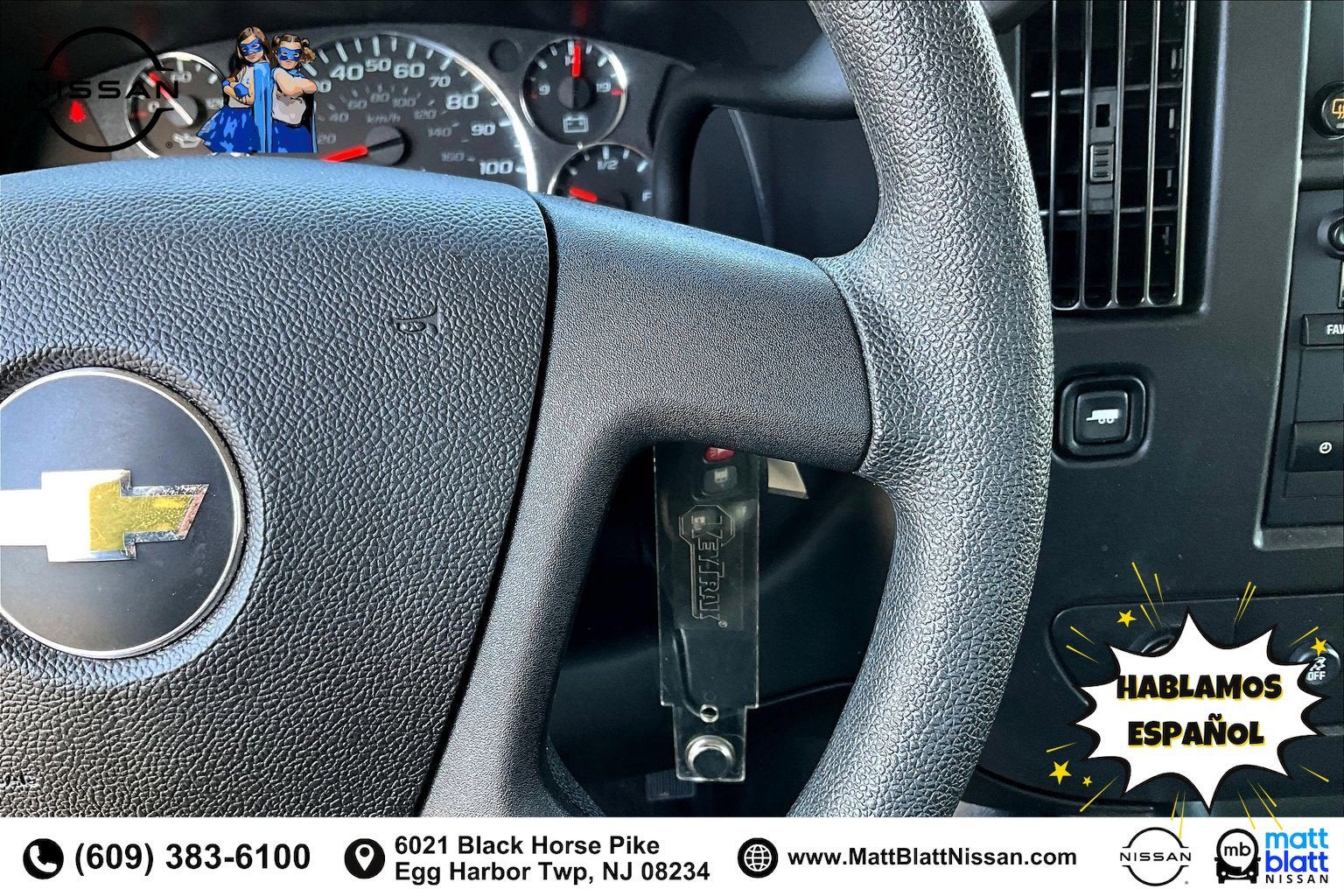

• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Steering column, Tilt-Wheel
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center
• Windows, power (Included with (ZQ2) Power Convenience Package.)
• Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Cruise control
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlet, 120-volt
• Air conditioning, single-zone manual
• Air conditioning, rear
• Heater, rear auxiliary
• Defogger, front and side windows

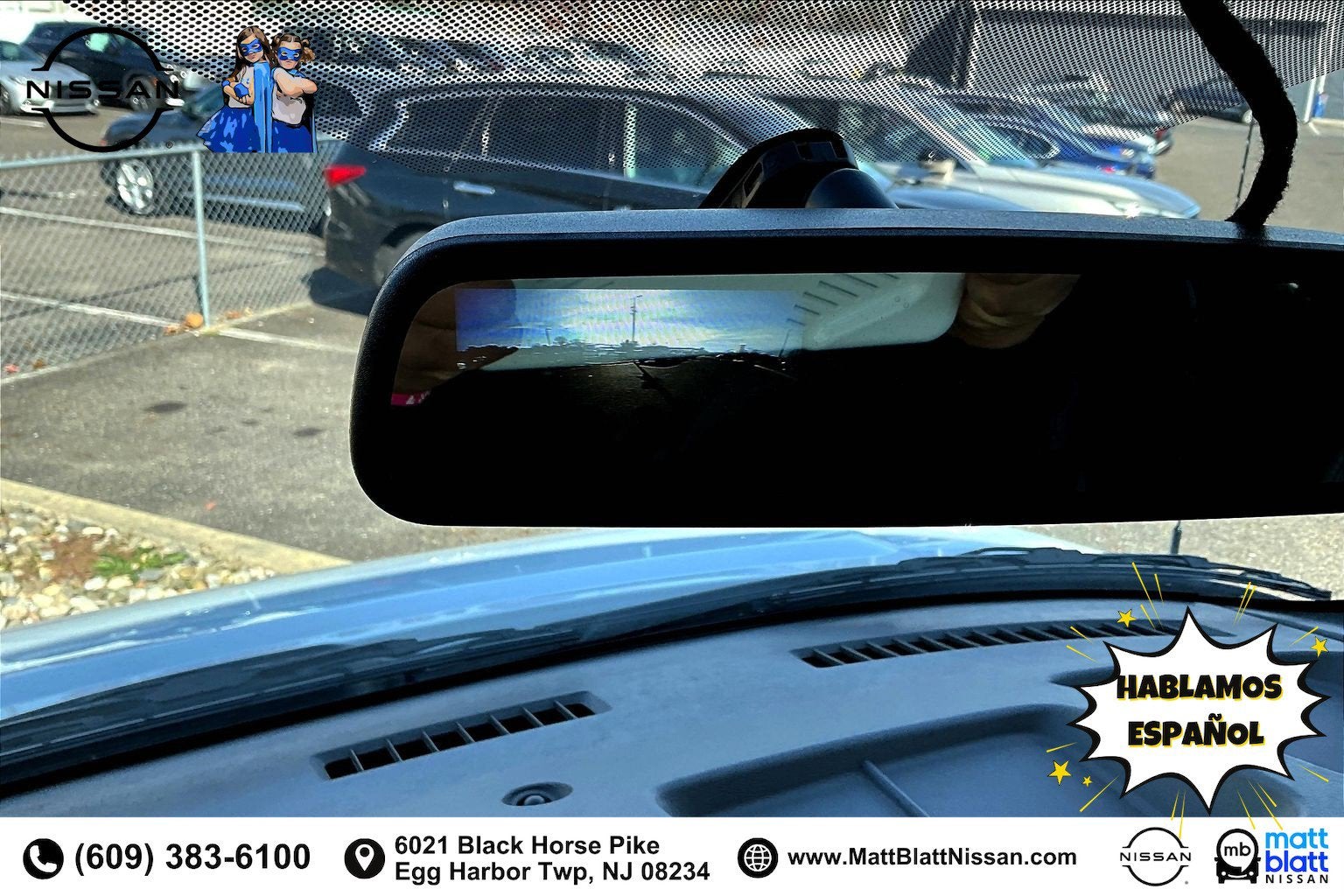

• Mirror, inside rearview, with Rear Vision Camera display
• Headliner, cloth
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handles, driver and right-front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting, auxiliary with reading lights
• Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Door beams, steel-side
• Daytime Running Lamps
• Rear Vision Camera (Display is included with (DRJ) Inside rearview mirror.)
• Airbags, frontal, front driver and right front passenger includes passenger-side airbag deactivation switch (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain provides coverage for outboard seating positions for first 3-rows only. Enhanced-technology glass is provided for fourth row with (ZX5) 12-passenger seating and fourth and fifth rows with (ZP3) 15-passenger seating (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. For MY25 vehicles, OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Child seat anchors all three passenger rear seats have two anchors for outboard seating positions and tethers for two seating positions. See the Owner's Manual for more information
• Tire Pressure Monitoring System (does not apply to spare tire)

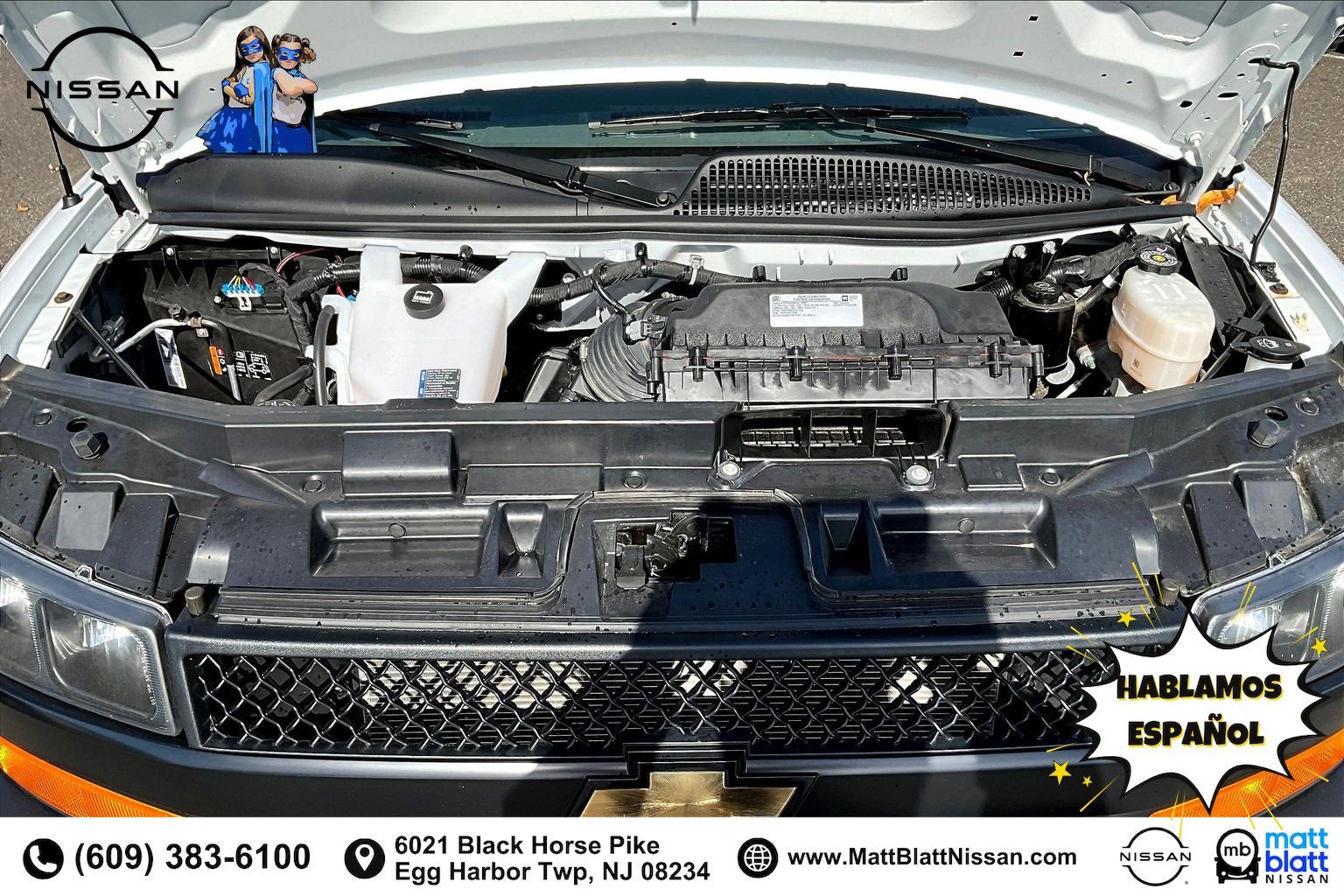

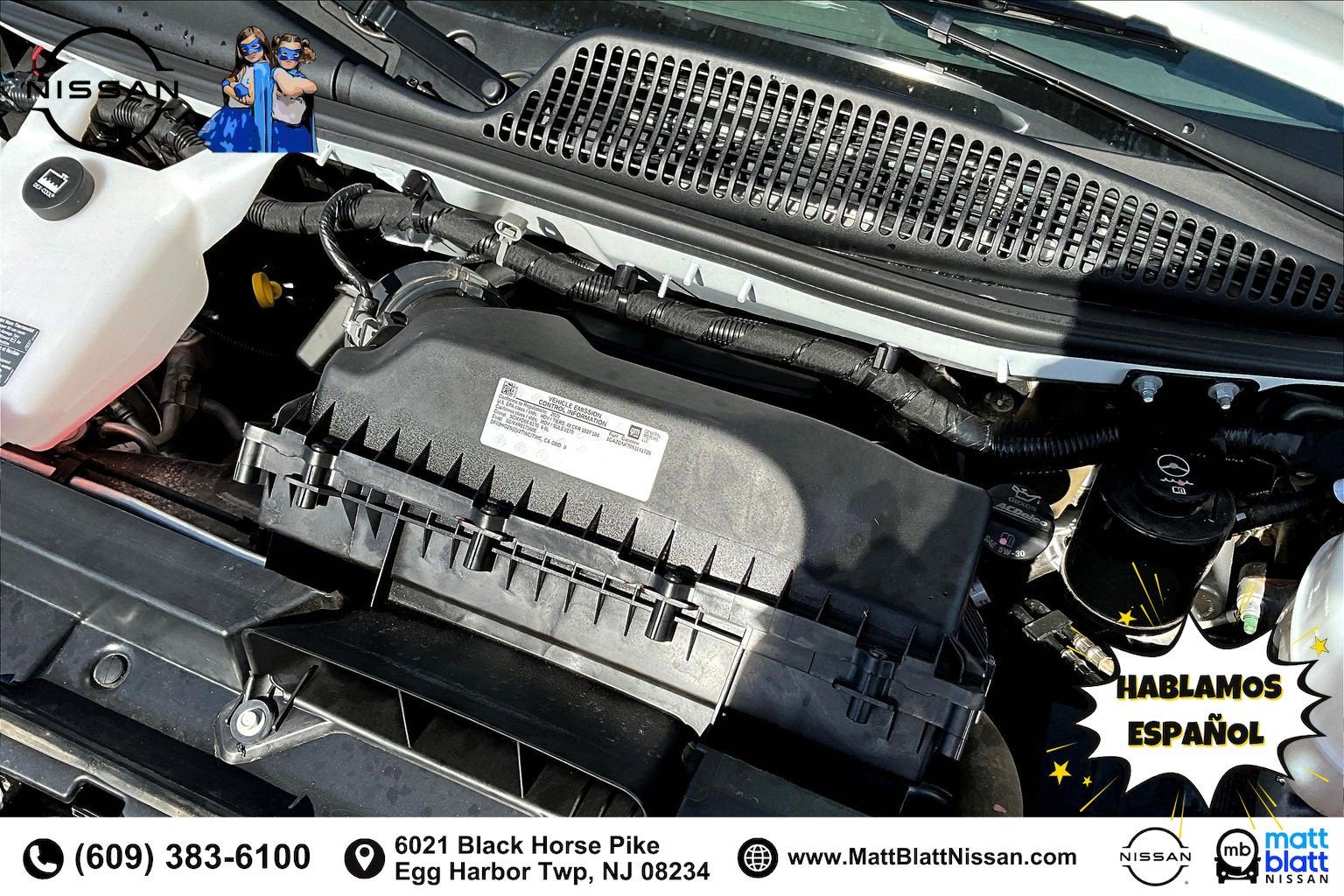

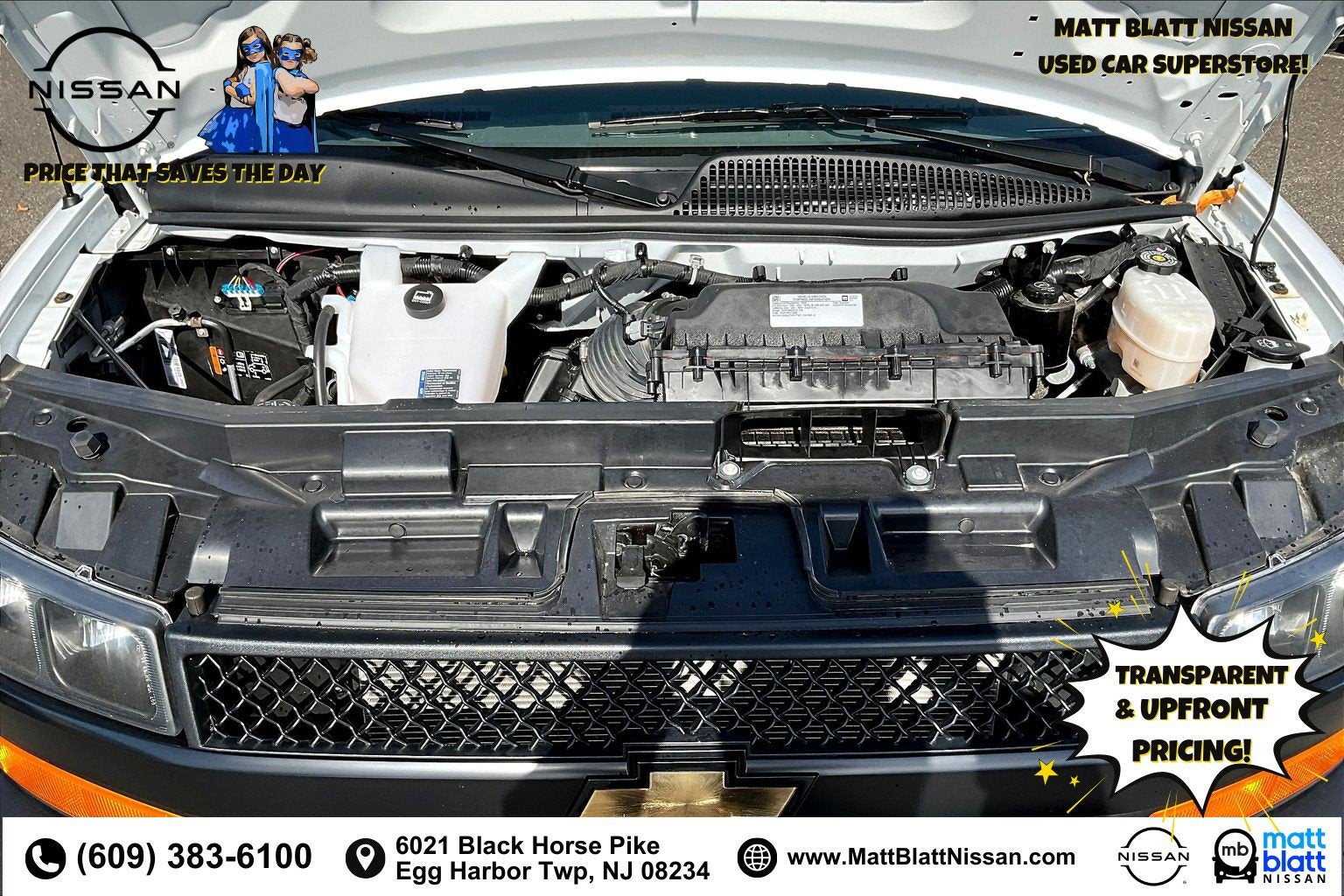

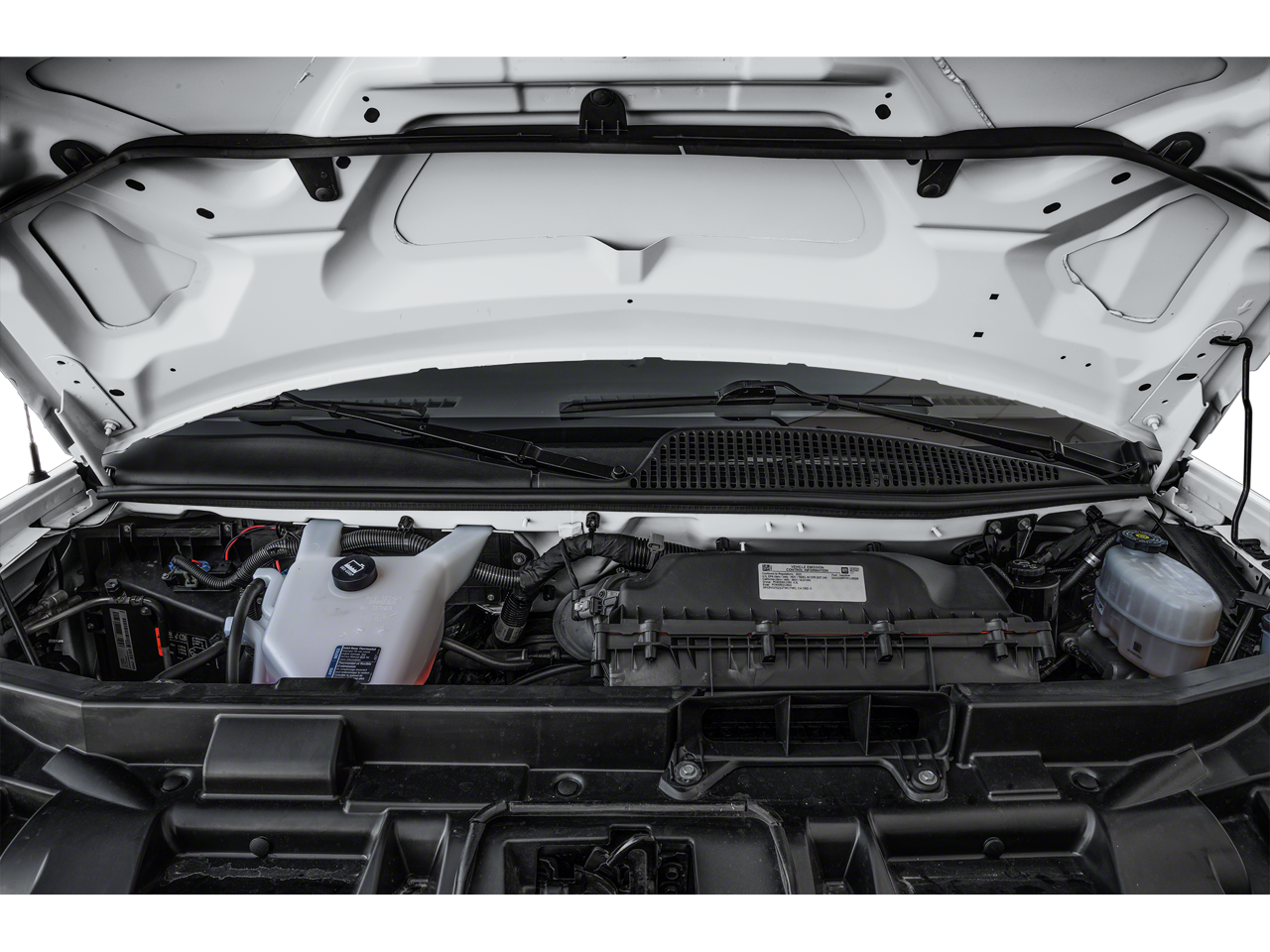

ENGINE, 6.6L V8 WITH DIRECT INJECTION

• and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external engine oil cooler.

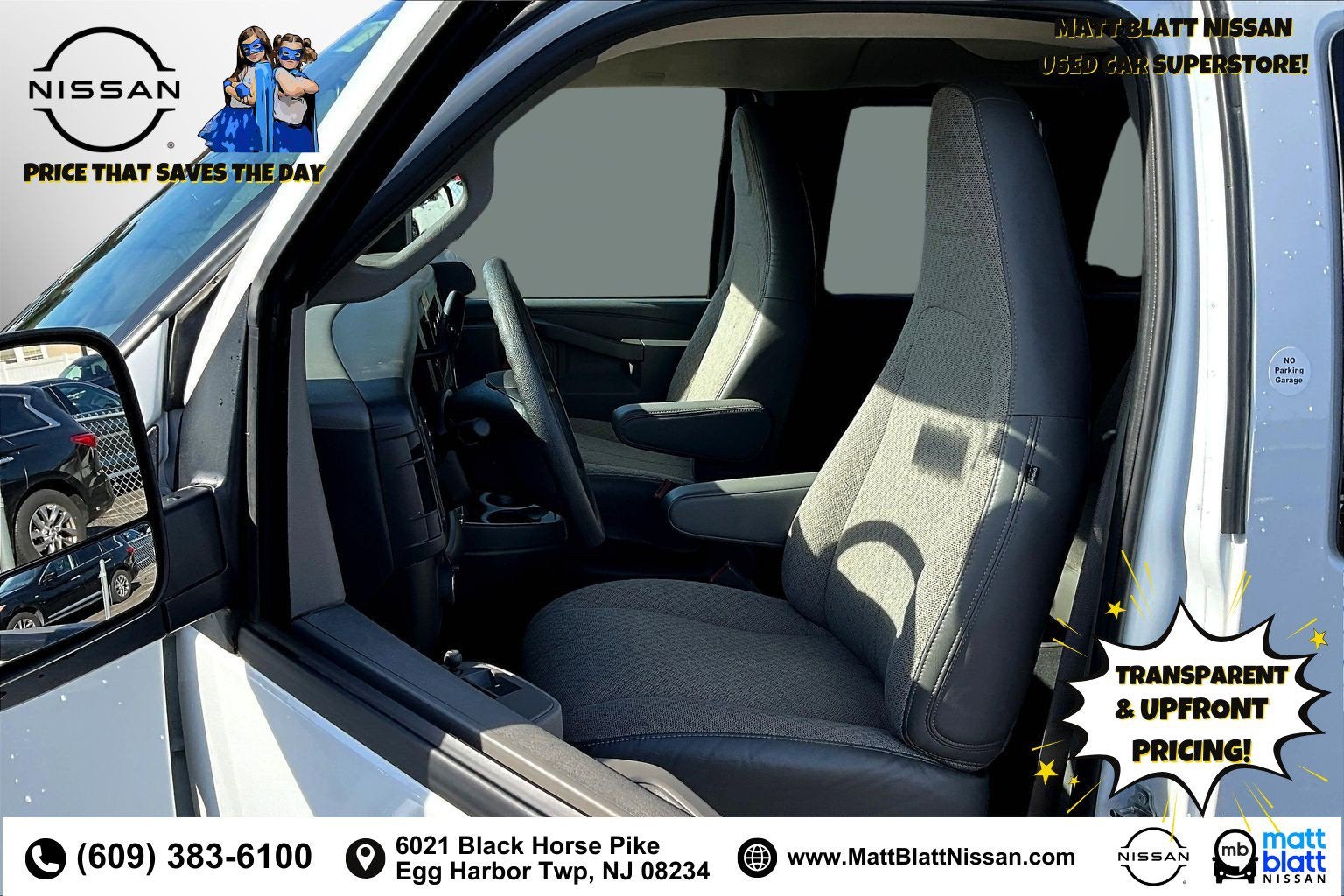

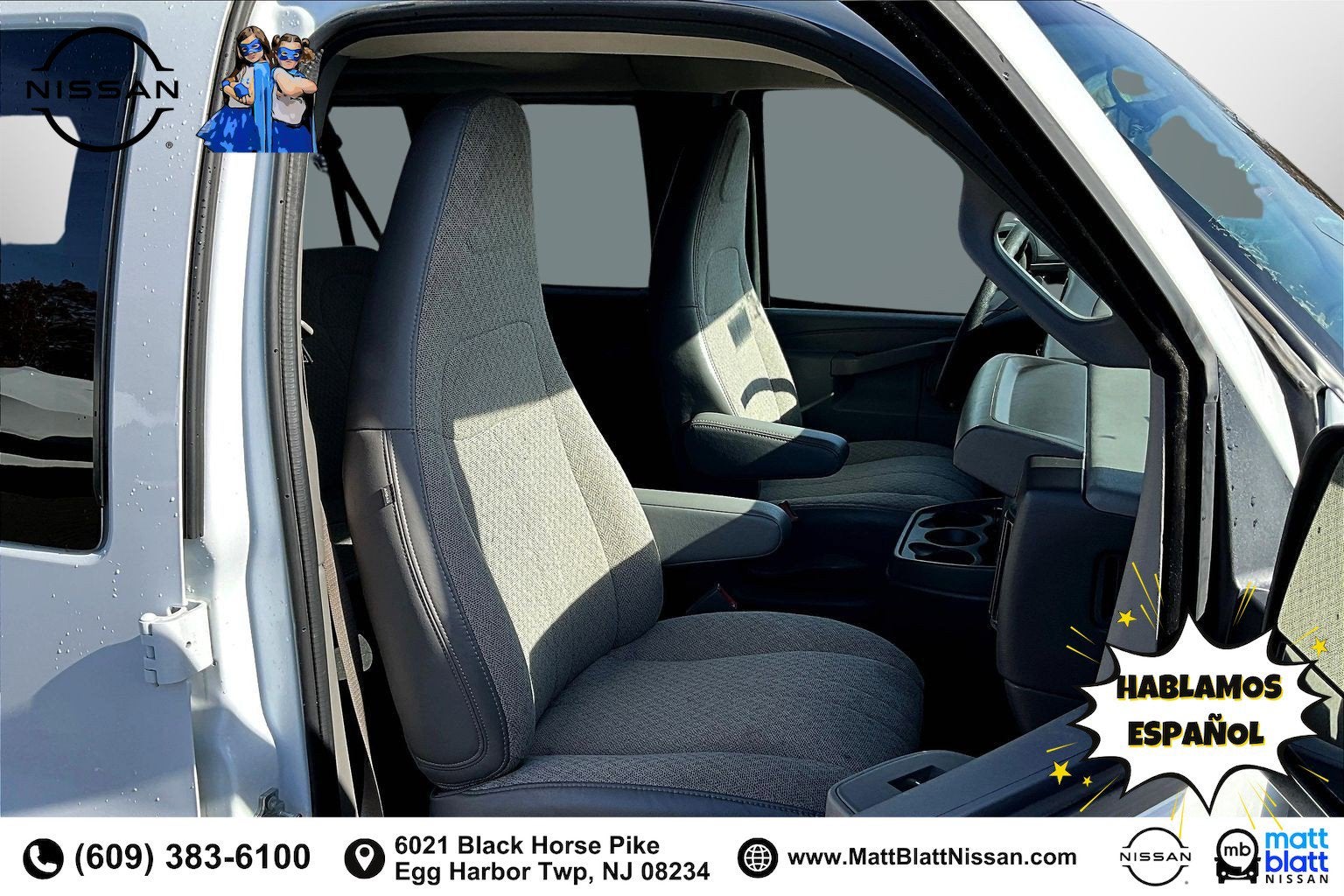

• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.

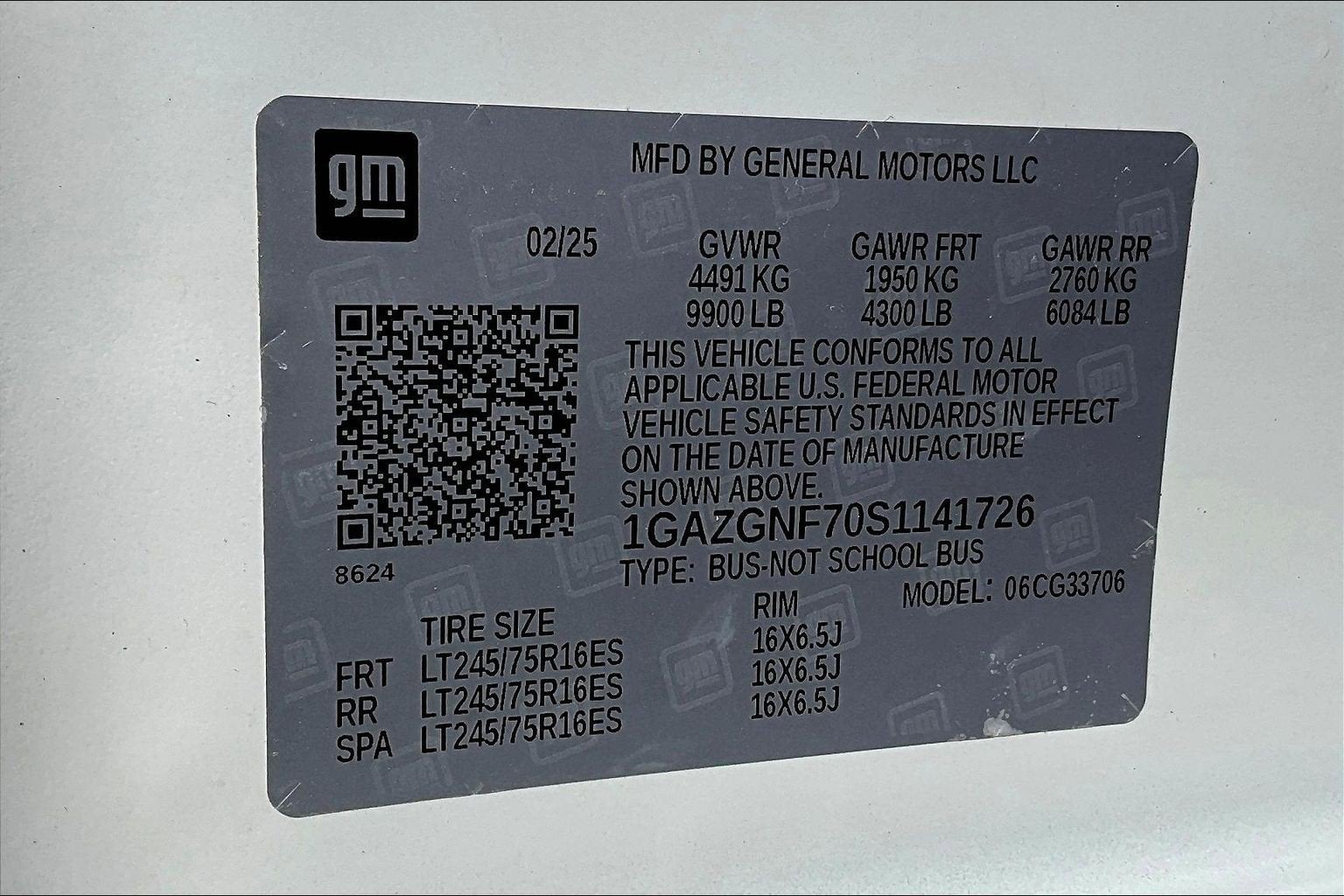

• GVWR 9900 LBS. (4490 KG)
• REAR AXLE 3.42 RATIO
• THEFT ALARM NOTIFICATION requires paid plan working electrical system cell reception GPS signal armed GM factory-installed theft-deterrent system contact method on file and enrollment to receive alerts. Message and data rates may apply. See onstar.com for details and limitations
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• DEFOGGER REAR-WINDOW ELECTRIC
• WHEELS 4 - 16 X 6.5 (40.6 CM X 16.5 CM) STEEL includes Gray center caps and steel spare (STD)
• BODY STANDARD (STD)
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• ENGINE 6.6L V8 WITH DIRECT INJECTION and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external engine oil cooler.
• MEDIUM PEWTER CUSTOM CLOTH

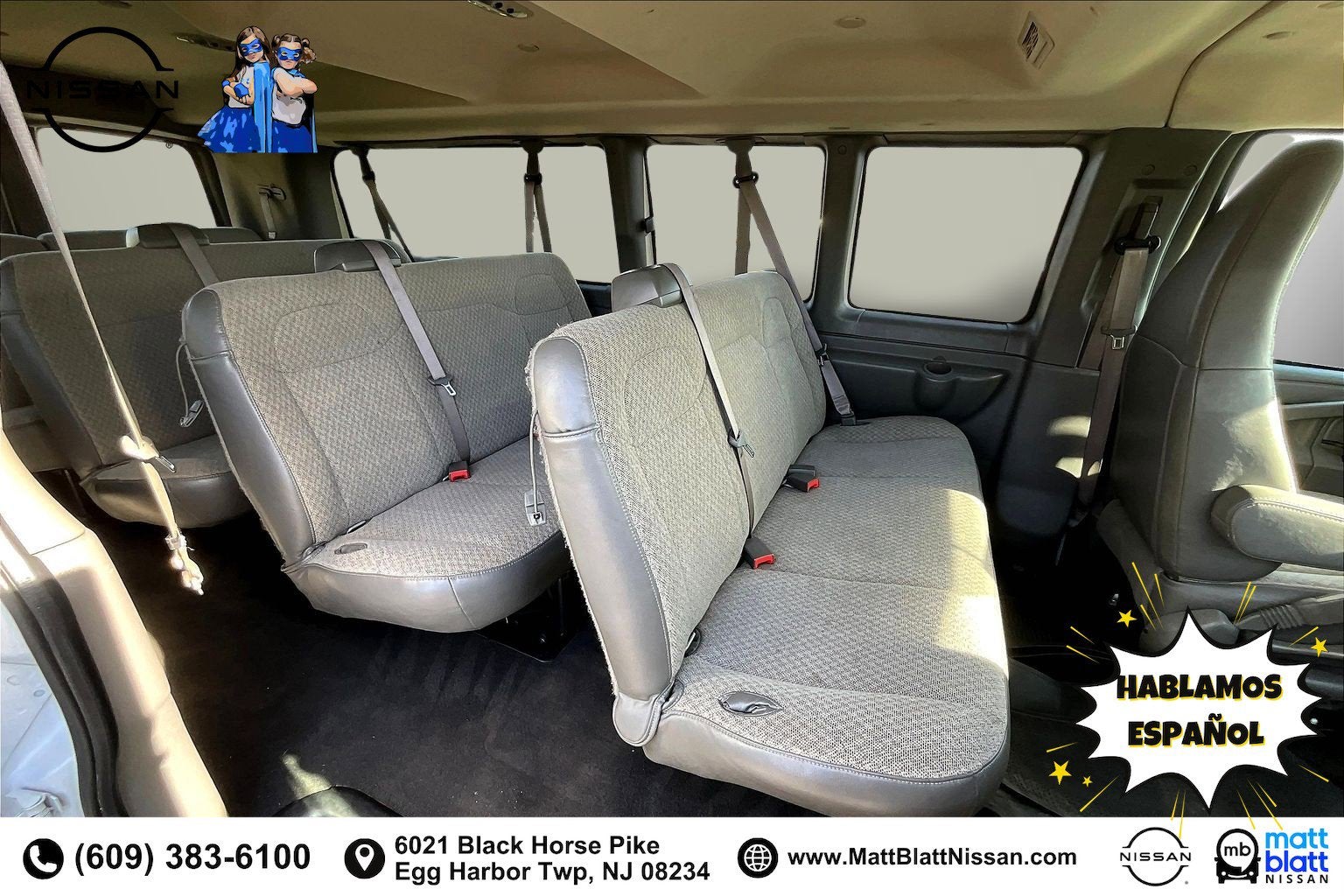

• SEATING 15-PASSENGER (2-3-3-3-4 SEATING CONFIGURATION) 4-passenger seat is a 50/50 split 2-piece configuration

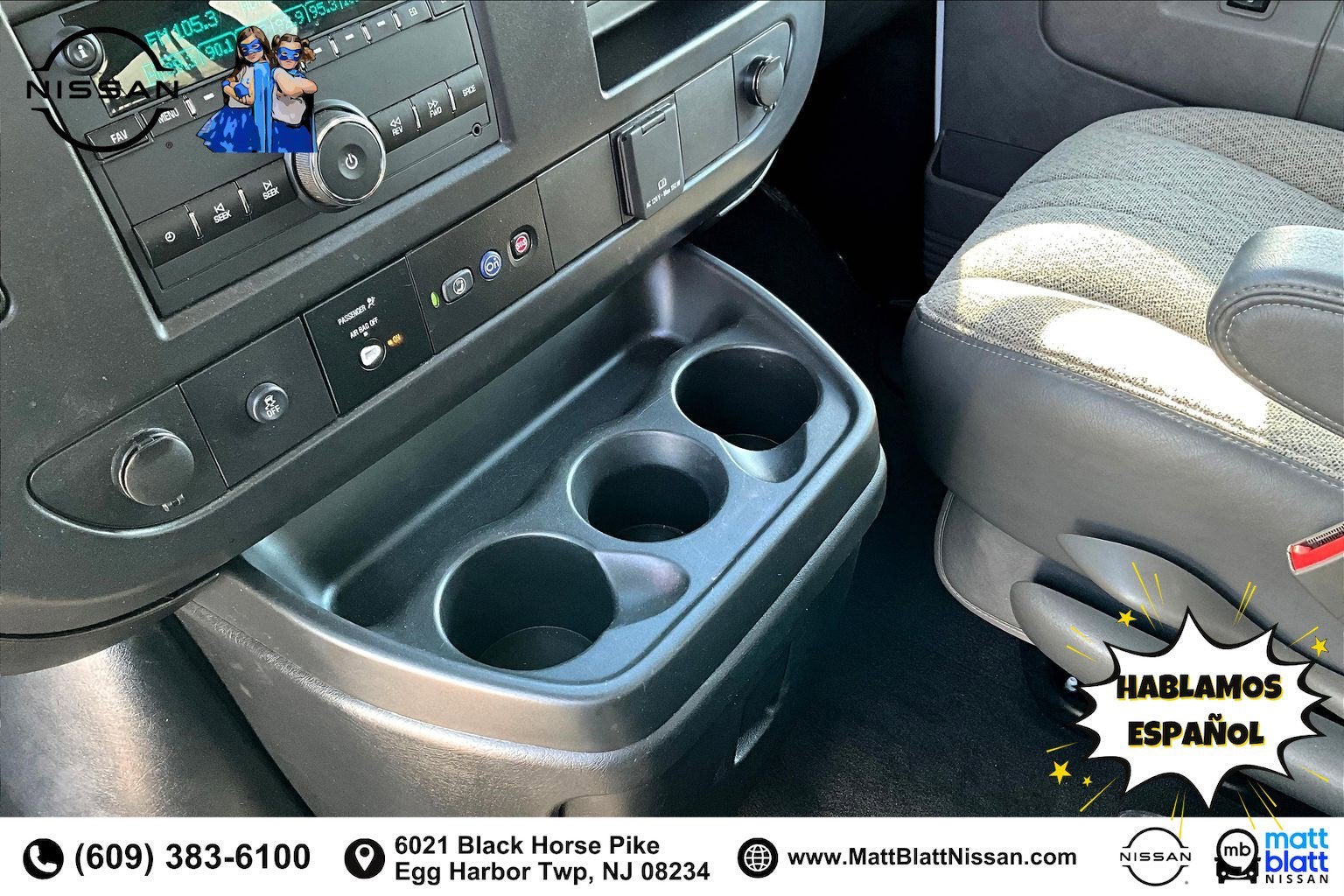

• CONSOLE DELUXE with swing-out storage bin
• FLOOR COVERING FULL-FLOOR COLOR-KEYED CARPETING with front and rear rubberized vinyl floor mats
• LS PREFERRED EQUIPMENT GROUP includes standard equipment
• HORN DUAL-NOTE HIGH AND LOW
• TRANSMISSION 8-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control
• PAINT SOLID (STD)
• Cruise Control
• Adjustable Steering Wheel
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• 3rd Row Seat
• Adjustable Steering Wheel
• Tire Pressure Monitor
• Trip Computer
• Power Windows
• Power Door Locks
• Cruise Control
• Immobilizer
• Power Outlet
• Power Outlet
• A/C
• A/C
• Rear A/C
• Back-Up Camera
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Back-Up Camera
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Navigation System
• Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-Out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3189
• Curb Weight - Rear (lbs): 2984
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 630
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-Frame
• Doors
• Side Door Type: Swing-Out
• Exterior Dimensions
• Wheelbase (in): 155.1
• Length, Overall (in): 243.95
• Width, Max w/o mirrors (in): 79.25
• Height, Overall (in): 84.7
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.13
• Ground to Top of Load Floor (in): 32.2
• Ground Clearance, Front (in): 9.45
• Ground Clearance, Rear (in): 8.6
• Rear Door Opening Height (in): 45.7
• Rear Door Opening Width (in): 53.42
• Side Door Opening Height (in): 46.7
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): 27.25
• Step Up Height - Side (in): 27.85
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.65
• Cargo Area Length @ Floor to Seat 1 (in): 146.05
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 51.8
• Cargo Volume to Seat 1 (ft³): 255.5
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.85
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Front Hip Room (in): 65.48
• Second Head Room (in): 38.42
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 68.6
• Second Hip Room (in): 65.62
• Third Head Room (in): 38.5
• Third Leg Room (in): 36.58
• Third Shoulder Room (in): 65.75
• Third Hip Room (in): 63.25
• Fourth Head Room (in): 38.3
• Fourth Leg Room (in): 36.58
• Fourth Shoulder Room (in): 69.1
• Fourth Hip Room (in): 65.65
• Summary

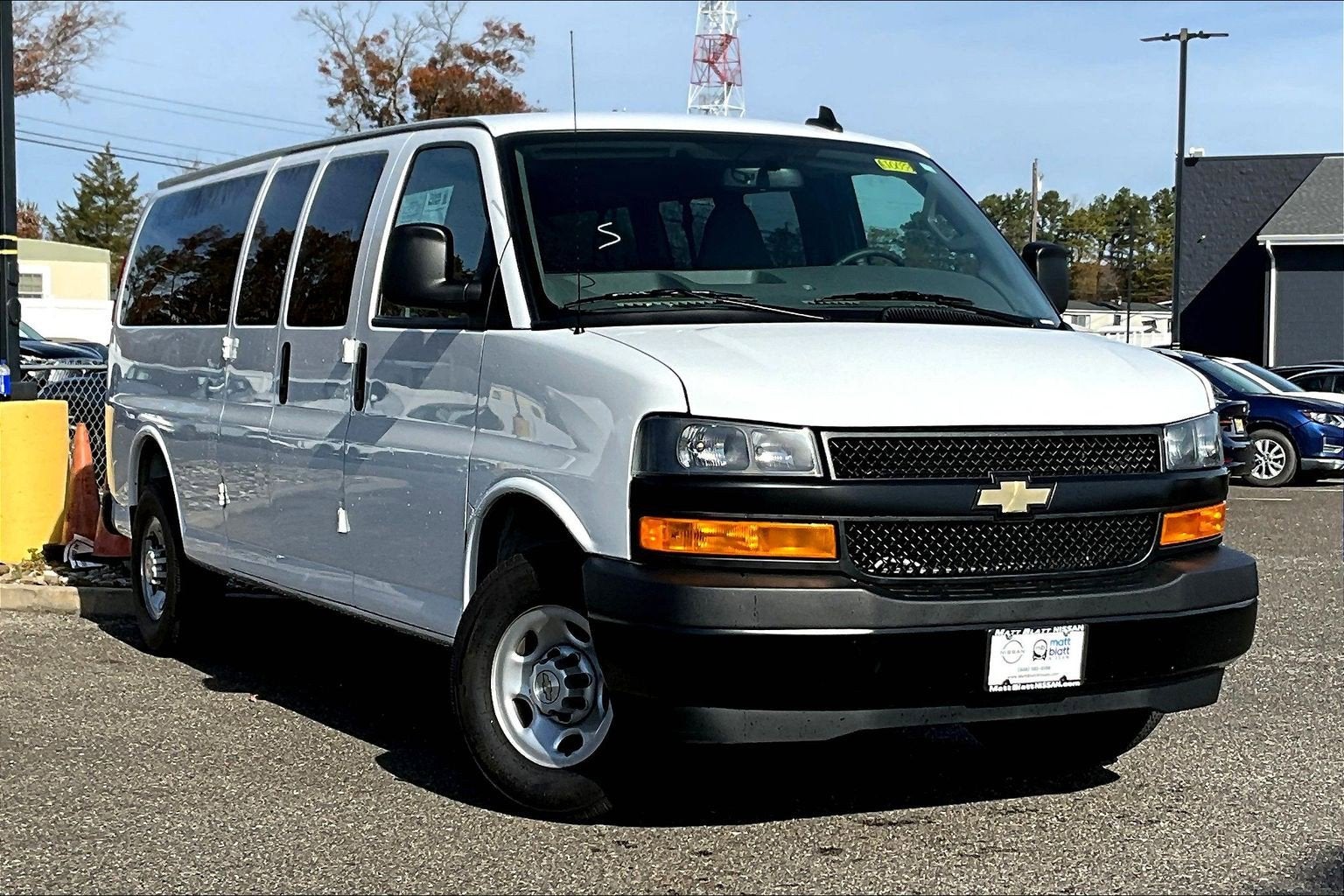

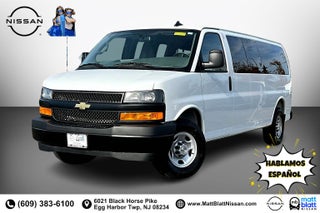

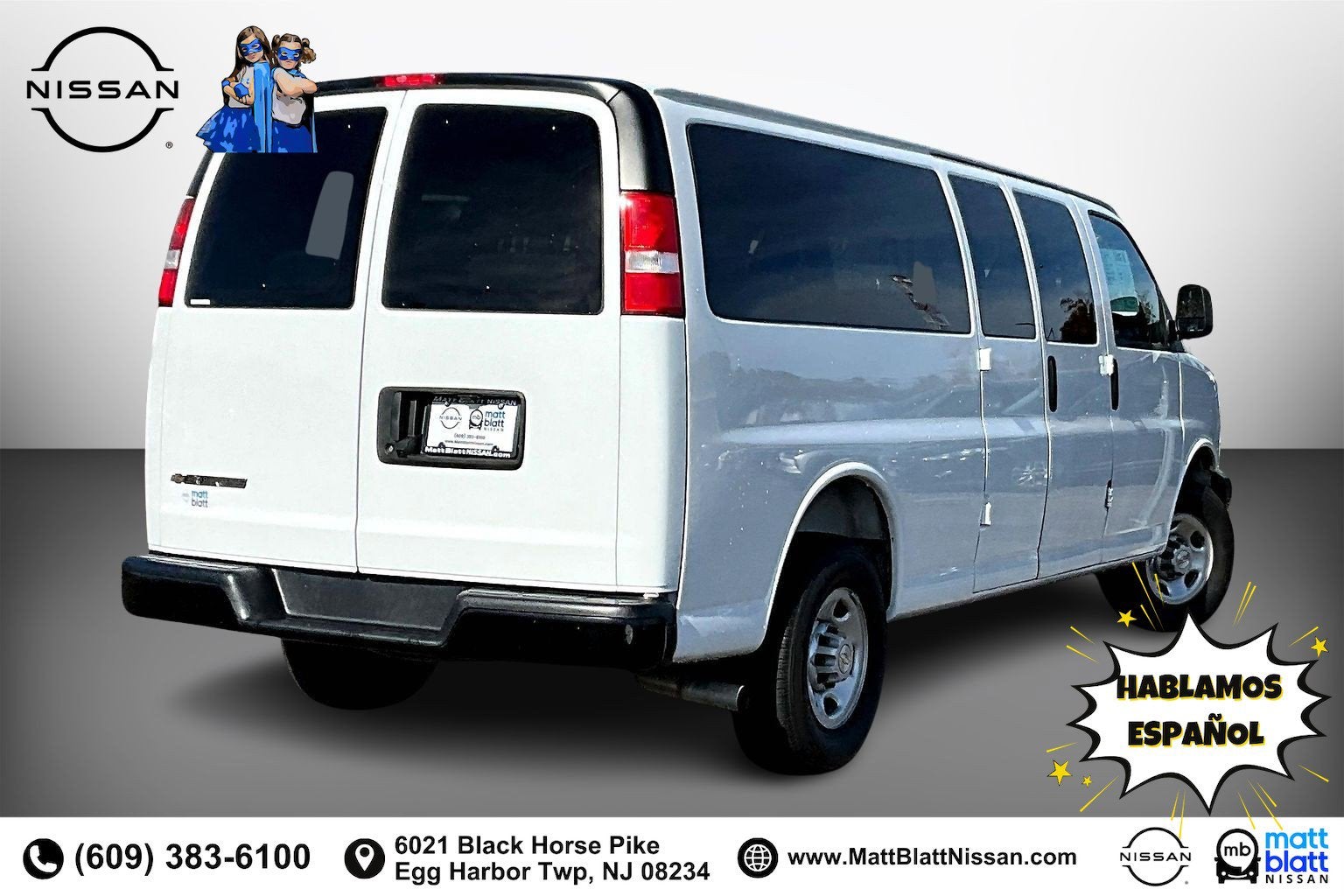

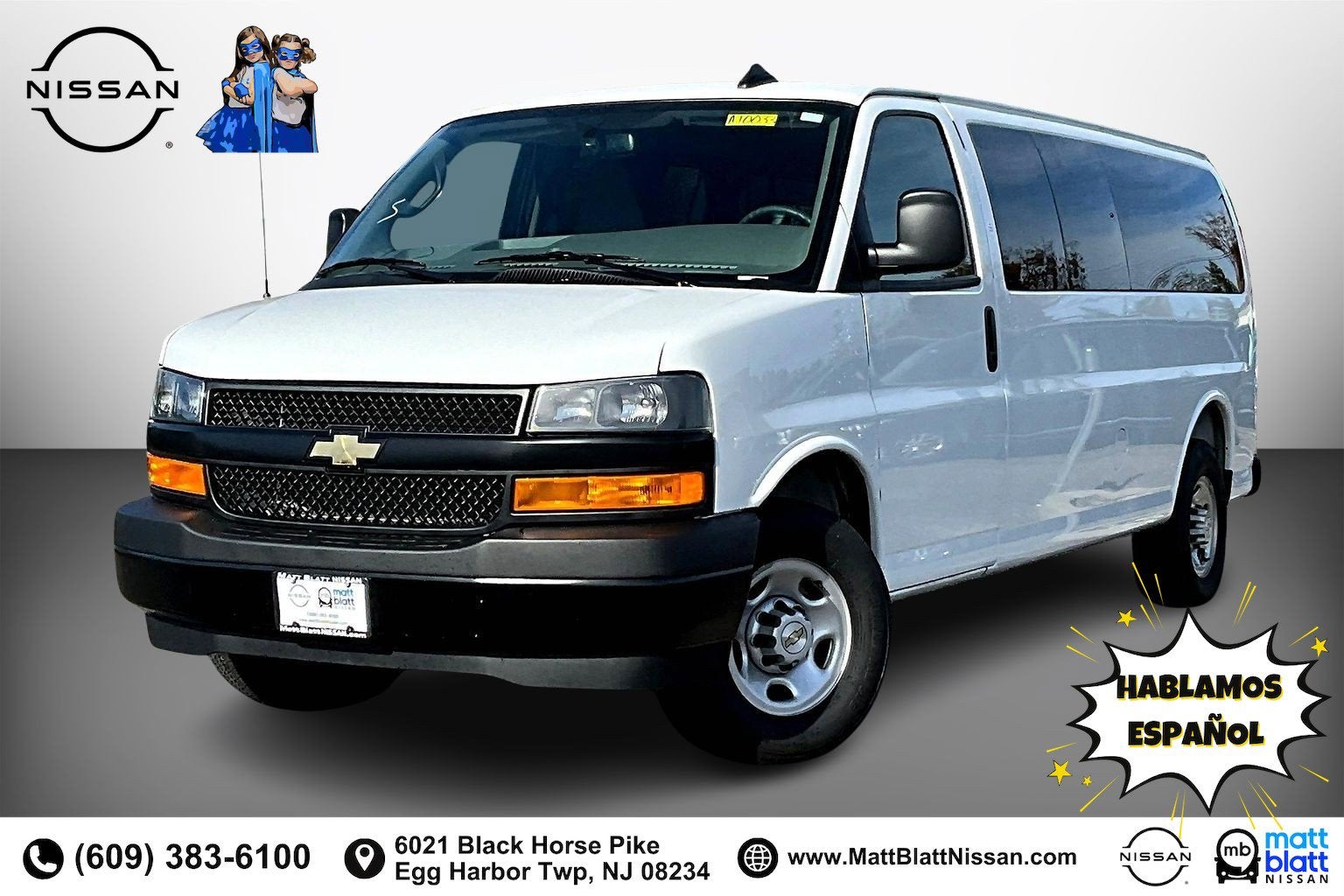

• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
